Bright studio monitors hide a lot of thumbnail problems. Upload compression, autoplay overlays, and aggressive phone brightness can knock a passing contrast ratio down to a blurry mess before viewers even see your hook. Real-device checks with the Contrast Checker ensure your work holds up when it lands on the YouTube, TikTok, or Instagram feeds that actually matter.
This guide walks you through a Capture > Simulate > Verify workflow: import a clean base image, simulate the most punishing mobile previews, and validate fixes by photographing a real device. You will leave with a repeatable playbook, example findings, and the assets needed to align designers, editors, and whoever presses publish.
Table of Contents
Category hub: /creator/thumbnails
Quick Start — Real-Device Checks in Under 5 Minutes
- Open the Contrast Checker and upload your working thumbnail or import the frame you exported from the Thumbnail Resizer.
- Add focus overlays for every text block, then auto-sample text and background colors to log the baseline ratios.
- Toggle Split view with safe-area, grid, and hotspot overlays so you can compare original vs corrected art at feed scale. Adjust highlight plates until every overlay passes AA.
- Capture screenshots or photos from your phone/tablet, save your current Contrast Checker state via Share settings, then upload the device capture as a second pass to see what changed after compression.
- Export the corrected PNG plus the Markdown report so editors, designers, and channel managers can re-check before upload.
Why Real-Device Checks Catch Issues Desktop Misses
Desktop previews lie. Creators typically review thumbnails zoomed in on calibrated monitors with perfect lighting. Real viewers encounter aggressive compression, UI chrome, autoplay gradients, and different display technologies. Running a real-device pass spots problems before the algorithm does.
Compression and brightness shifts after upload
YouTube, TikTok, and Instagram recompress every asset you upload. Midtones flatten, neon greens clip, and fine strokes disappear. When you capture a device screenshot and feed it back into the Contrast Checker, you see the actual luminance each pixel hits after the platform has chewed on it.
- Expect a 0.3–0.8 drop in contrast ratio on bright backgrounds after compression.
- OLED phones exaggerate this shift in dark mode because UI chrome applies gradients on top of your art.
- Bright daylight viewing effectively lowers contrast another notch; that’s why AAA targets matter for outdoor audiences.
Platform chrome and autoplay overlays
The timestamp plate, channel avatar, Shorts icon, and autoplay scrubber each cover a chunk of your thumbnail. Real-device previews show the exact bounding boxes so you can slide your text accordingly. Combine this with safe-area overlays in the Thumbnail Resizer to keep copy away from the lower-right corner where timestamps live.
- Contrast Checker’s hotspot panel highlights areas where chrome + background produce sub‑AA ratios.
- Real-device captures reveal autoplay gradients that are impossible to mimic on desktop.
- Documenting these findings in the Markdown export makes it easy to explain design decisions to stakeholders.
Prep Contrast Checker for Accurate Mobile Proofing
Import reference frames and lock your baseline
Start with the highest-quality frame available. If you designed inside Figma or Photoshop, export a 1280×720 PNG. If you trimmed a video still, run it through the multi-aspect workflow to keep framing consistent, then upload it to the Contrast Checker. Log the file name and version inside the Notes panel so everyone knows which iteration passed.

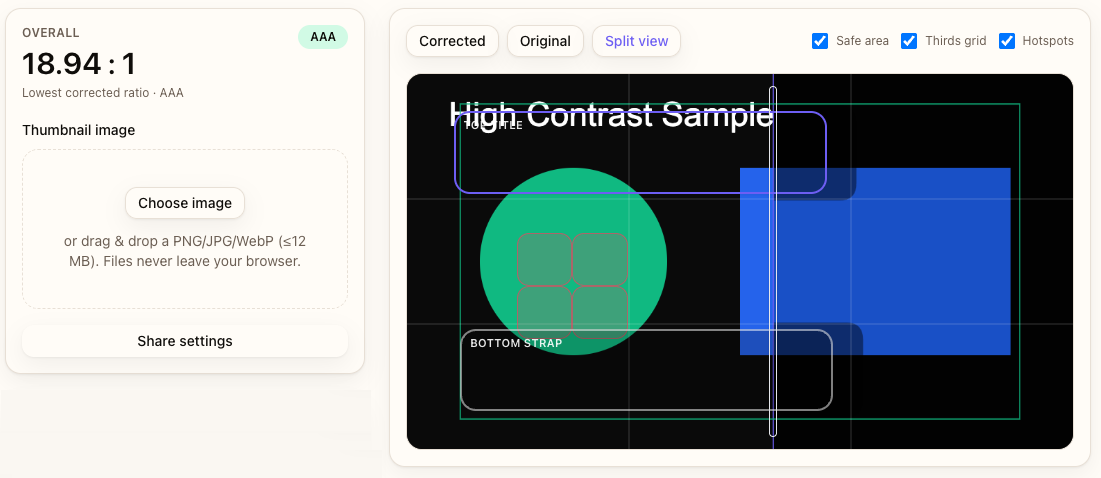

Map focus overlays to every text block and hotspot
Drag the default overlays over each hook, strap, or badge. Add more overlays for face contours if expressions matter. Auto-sample both colors to capture an honest baseline before any fixes. This is the anchor for the rest of the workflow.
Name each overlay descriptively (“Top Hook”, “CTA Strap”), then tap Duplicate overlay if you need variants with different highlight plates. That metadata flows into the final report, so reviewers instantly see which elements passed or failed.

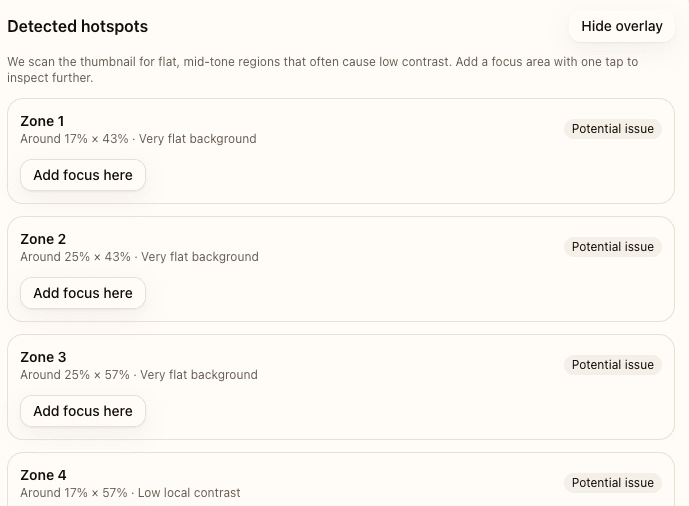

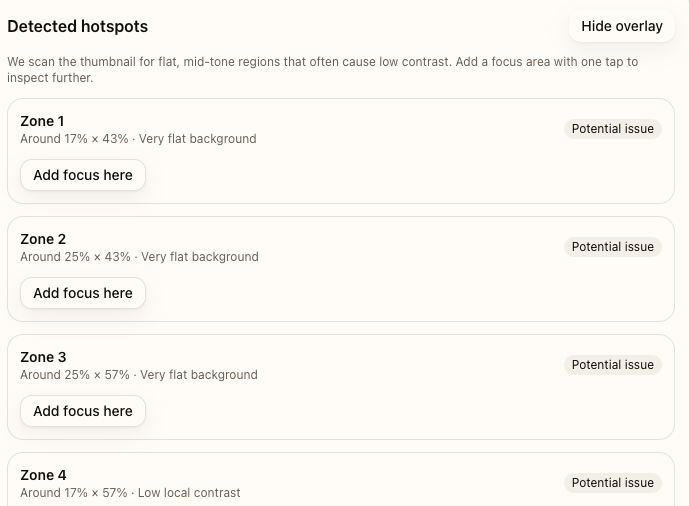

After overlays are placed, toggle Hotspots. Contrast Checker scans the entire canvas, prioritizes risky regions, and tells you which ones fail AA or AAA. Tackle those first so you’re not chasing edge cases later.
Run Real-World Contrast Checks

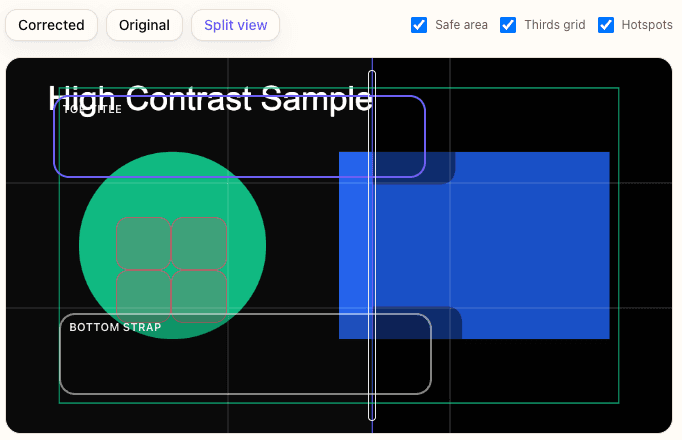

Use Split view to stress-test your fixes
Toggle Split view to see the original and corrected art inside one frame. Keep the safe-area grid, thirds grid, and hotspot overlay enabled so you notice when adjustments push type toward platform chrome. Slide the split handle over tricky regions to make sure the corrected version truly improves contrast.
When a region still fails, tweak highlight plates, contrast, or vignette sliders incrementally. Document every change in the Notes field so you can explain the delta when re-checking on a phone.
Auto-tune failing areas before you grab device captures
The Auto-tune failing areas button applies your current correction stack to every hotspot. Run it after each manual tweak; it saves minutes compared to nudging sliders per overlay. Once ratios pass, take a quick phone screenshot of the live feed, then upload that capture as a new analysis to see what compression did to your work.
Saving the current state via Share settings ensures you can reload the baseline after testing a phone capture. Rename each share link (“Desktop pass”, “iPhone 15 Outdoors”) so raters know which measurements belong to which device.

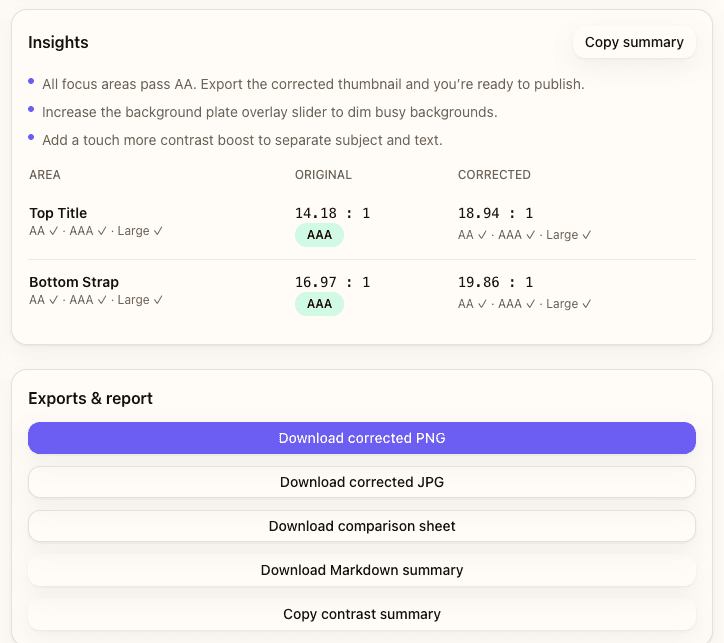

Document the delta with exports and share links
Once you’ve compared desktop vs phone ratios, package the findings. Use Copy summary for quick Slack updates, download the Markdown summary for longer threads, and grab the comparison sheet if you need visuals for client approvals. Store each file next to the phone screenshot so anyone can trace the issue and fix.
Pair those exports with the real-device screenshot in your asset folder. When numbers drift, you instantly see whether the platform changed compression or the design regressed.
Examples — Pass/Fail Findings from Real Devices
Busy footage stabilized with highlight plates
Lifestyle footage with moving backgrounds almost always fails after upload. In the example above, the Hotspot panel caught a “fail” where the lavender headline sat over a bright kitchen. A 20% darker highlight plate and a subtle vignette lifted the ratio from 2.8:1 to 4.9:1 without changing brand colors.
Dark-mode dropout visible only on OLED
The second capture came from an iPhone Pro viewed outdoors. The timestamp badge and Shorts icon introduced overlapping gradients that murdered contrast in the lower-right strap. Re-running Auto-Tune, adding a black-to-transparent gradient plate, and nudging the strap upward solved the issue. You would never spot that on a desktop mockup.
Common Mistakes & Fixes
- Only testing on desktop → Save a share link of your baseline, capture a quick phone/tablet screenshot, and run a second pass so you can compare ratios after compression.
- Ignoring straps and badges → Add overlays to channel badges, subtitles, and CTA chips so their ratios show up in the report.
- Fixing contrast but breaking crops → Re-export variants with the Thumbnail Resizer or Aspect Ratio Converter so 9:16 and 1:1 covers inherit the same padding and highlight plates.
- Skipping documentation → Export the Markdown report so future thumbnails start from known-good ratios instead of guesswork.
FAQs
- How do I validate desktop ratios against a real device?
- Save a share link of your desktop pass, take a phone or tablet screenshot of the feed, and upload that capture as a new analysis. Comparing the two runs shows exactly how compression, UI chrome, and brightness shifts affect each overlay.
- Do I need separate checks for dark and light overlays?
- Yes. Toggle your phone between themes (or capture two devices) and repeat the pass because timestamps, channel badges, and gradients invert between modes and can tank contrast on just one of them.
- What ratio should I target for bold thumbnail text?
- Treat bold hooks as large text and aim for ≥4.5:1. That cushion survives compression, keeps straps readable on TVs, and avoids surprises when Shorts applies its white gradient.
- How do I capture and compare real-device screenshots quickly?
- Pause on the thumbnail in the app, snap a native screenshot (or short screen recording), send it to desktop, and upload it into Contrast Checker as a new run. Label the file (“Pixel 8 dark mode”) so you know which capture produced each report.
- Can I reuse overlays and reports across a series?
- Absolutely. Clone the project state (Share → Copy link) for recurring formats. Update the image, refresh the overlays, and you’ll keep historical pass/fail data for every episode.
- What if a fix for YouTube breaks my Shorts cover?
- After passing on desktop and 16:9 mobile, send the asset through the Thumbnail Resizer to export 9:16 and 1:1 crops. Re-run Contrast Checker on those exports to ensure the new padding, strokes, and highlight plates still pass.
Related Workflows & Next Steps
Pair this real-device check with the legibility toolkit for stroke and highlight recipes, then use the Title A/B Test guide or Hook Generator playbooks to validate that copy itself is strong. The more you share annotated captures and reports, the easier it becomes for collaborators to ship thumbnails that survive any device.
